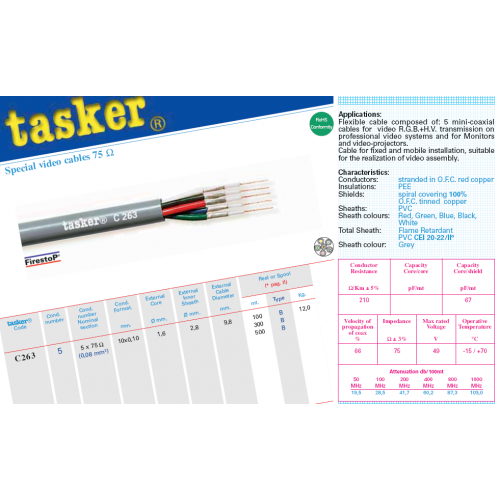

C263 tasker 5x0.08 mm² - 28 AWG - 75 Ohm Multi-Video Mini-Coax cable R.G.B.+H.V.

C263 tasker 5x0.08 mm²  - 28 AWG - (75 Ω ) Multi -Video Mini-Coax cable
Special cable for video R.G.B.+H.V. transmission on professional video systems and for Monitors and video-projectors.

Outer cable Diameter:  Ø 9.80 (±0.20) mm
Conductor Resistance:  203 Ω/Km
Capacity Core/Shield:  67 pF/mt
Velocity of Propagation:   66%
Impedance:  75 Ω
Max Rated Voltage:  49 V
Operative Temperature:  -20/+70°C
Stranded formation in O.F.C. red copper:  10x0.10 mm
Nominal Cross section:  5x0,08 mm² (75 Ohm)

Attenuation dB/100 mt @:    50 MHz19,50
                                                     100 MHz28,50
                                                     200 MHz47,70
                                                     400 MHz60,20
                                                     800 MHz87,30
                                                   1000 MHz103,00

CATEGORY Coaxial cable 75 Ω
APPLICATIONS Professional video transmission systems and monitors.

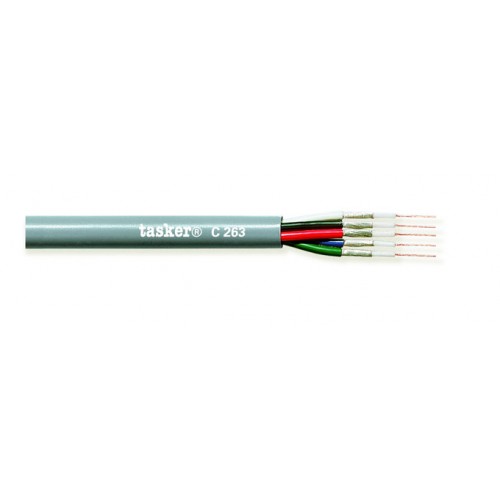

A: Grey Flame Retardant PVC Sheath. Outer Diam.Ø 9,80 (±0,20) mm.
B: Soft PVC Sheath on single conductors. Diam. Ø 2,80 (±0,20) mm. Colored: Red, Green, Blue, Black and White.
C: Shielding in O.F.C. tinned copper spiral covering 100%.
D: Core Insulation with PEE – Diam. Ø 1,60 (±0,20) mm. E: Stranded formation in O.F.C. red copper, 10x0,10 mm. Nom.
