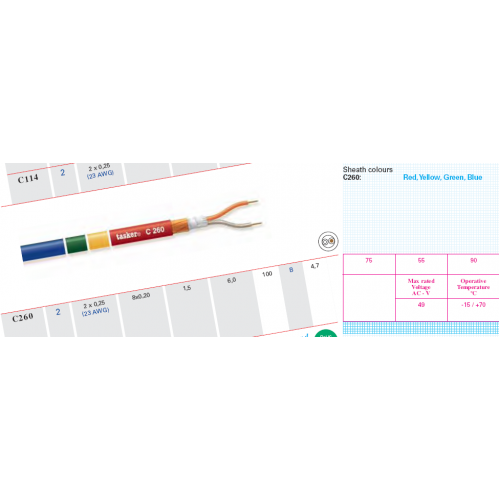

C260 Balanced microphone-cable Tasker 2x0.25 mm2 - 23 AWG red

C260 Balanced microphone-cable Tasker 2x0.25 mm2 - 23 AWG red

PROFESSIONAL NOISE-LESS MICROPHONE CABLE LOW-CAPACITY

Outer cable diameter:  Ø 6.00 (±0,20) mm
Conductor Resistance:  75 Ω/Km
Capacity Core/Core:  55 pF/mt
Capacity Core/Shield:  90 pF/m
Max Rated Voltage:  49 V
Operative Temperature:   -15/+70°C
Stranded O.F.C. red copper formation:  8x0.20 mm
Nominal Cross section:  2x0.25 mm²

CATEGORY Microphone Cable
APPLICATIONS Hand-Made Audio Cables and Microphone's.

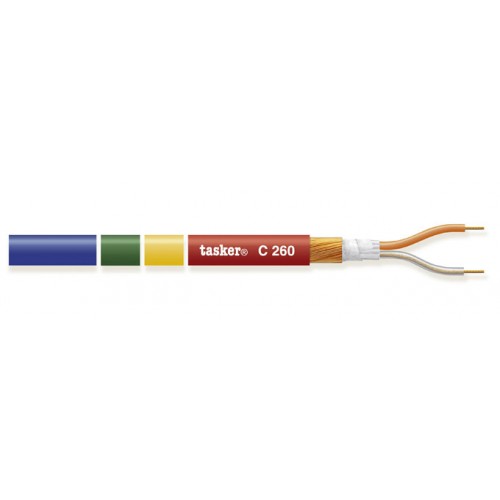

A: Soft PVC Sheath. Available in different color .Outer cable Diam. Ø 6,00 (±0,20) mm.
B: Shielding  O.F.C. red copper  Spiral covering 100%.
C: The cores are stranded in a pair with textile waste filler between conductors and wrapped with not woven polyester based tape.
D: Core Insulation with a compact PE, colored one Orange and one Transparent. Diam. Ø 1,50 (±0,20) mm.
E: O.F.C. red copper, formation 8x0,20 mm. Nom. Cross section 2x0,25 mm².
