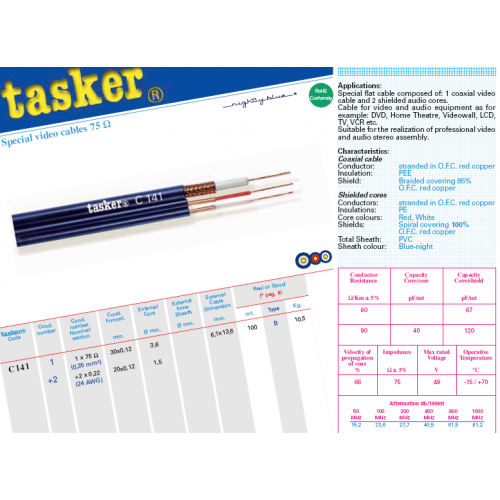

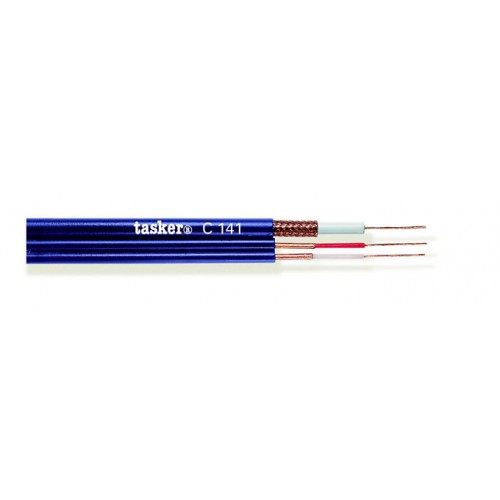

C141 Tasker 1x0,35 (75Ω) + 2x0,22 mm² Special Video-coax + Audio Flat Divisible Cable

C141 1x0.35 mm² + 2x0.22 mm² O.F.C.  Video-coax 75 Ohm + Audio Cable
Outer Diameter:  6.10x13.60 (±0.20) mm
Audio Section:
Conductor Resistance:  79,15 Ω/Km
Capacity Core-Core:  40 pF/m
Capacity Core-Shield:  120 pF/m
Max rated Voltage: 49 V
Operative Temperature:  -15/+70°C
O.F.C. red copper formation:  20x0.12mm
Nominal cross-section:  2x0.22mm²
Video Section:
Conductor Resistance:  58 Ω/Km
Impedence:  75 Ohm
Velocity of Propagation:  66 %
Capacity Core-Shield:  67 pF/m
Max rated Voltage: 49 V
Operative Temperature:  -15/+70°C
O.F.C. red copper formation:  30x0.12mm,75 Ohm
Nominal cross-section:  1x0.35mm²
Attenuation dB/100 mt:   50 MHz - 15,20
                                                100 MHz - 23,60
                                                200 MHz - 27,70
                                                400 MHz - 40,50
                                                800 MHz - 87,30
                                              1000 MHz - 103,00
