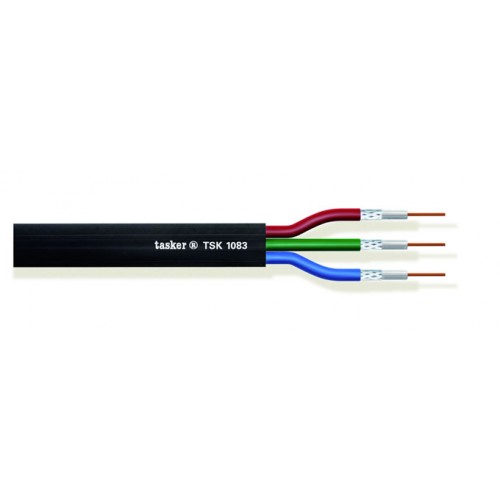

TSK1083 tasker 3x0.08 mm² Special Multi-coaxial Video-cable flat 3x75 Ohm RGB

TSK1083 tasker 3x0.08 mm² Special Multi-coaxial Video cable flat 3x75 Ω RGB

Outer cable diameter:  4.20x10.20 (±0.20) mm
Conductor Resistance:  203 Ω/Km
Capacity Core/Shield:  67 pF/m
Velocity of Propagation:  66%
Impedance:  75 Ohm
Max Rated Voltage:  49 V
Operative Temperature:   -20/+70°C
Stranded O.F.C. red copper formation:  9x0.10 mm
Nominal Cross section:  3x0.08 mm²

Attenuation dB/100m @:    50 MHz - 19.2
                                                   100 MHz - 27.9
                                                   200 MHz - 40.7
                                                   400 MHz - 59.2
                                                   800 MHz - 85.3
                                                 1000 MHz - 101.0

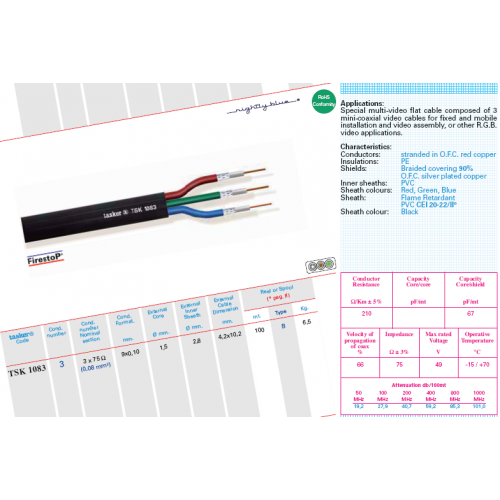

Special multi-video flat cable composed of 3 mini-coaxial video cables

Conductors: stranded in O.F.C. red copper
Shields: Braided covering 90% O.F.C. silver plated copper
Sheath colours: Red, Green, Blue
Sheath: Flame Retardant PVC CEI 20-22/II°

Multi-video cable for fixed and mobile installations and video assembly, or other R.G.B. video applications.
