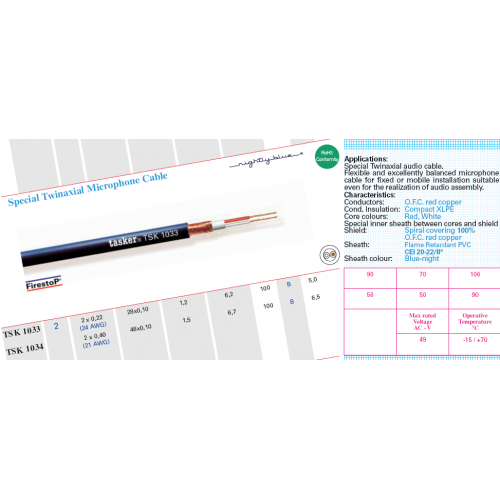

TSK1034 Balanced twin-axial microphone-cable Tasker 2x0.40 mm2 - 21 AWG

TSK1034 Balanced twin-axial microphone-cable Tasker 2x0.40 mm2 - 21 AWG

Outer cable diameter:  Ø 6,70 (±0,20) mm
Conductor Resistance:  46 Ω/Km
Capacity Core/Core:  50 pF/mt
Capacity Core/Shield:  90 pF/m
Max Rated Voltage:  49 V
Operative Temperature:   -20/+70°C
Stranded O.F.C. red copper formation:  48x0.10 mm
Nominal Cross section:  2x0.40 mm²

CATEGORY Microphone Cable
APPLICATIONS Hand-Made Audio Cables and Microphones.

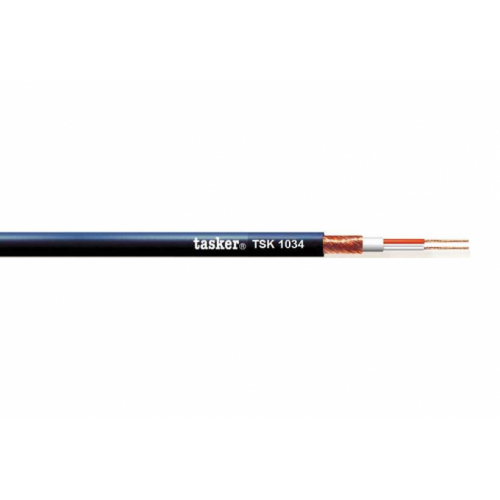

A: Blue-Night, soft flame retardant PVC Sheath. Outer cable diam. Ø 6,70 (±0,20) mm.
B: Shielding in O.F.C. red copper Spiral covering 100%.
C: Inner white sheath between conductors and shielding.
D: Core Insulation with a compact XLPE, colored one Red and one White. Core Diam. Ø 1,50 (±0,20) mm.
E: O.F.C. red copper formation 48x0,10 mm. Nom. Cross section 2x0,40 mm².
