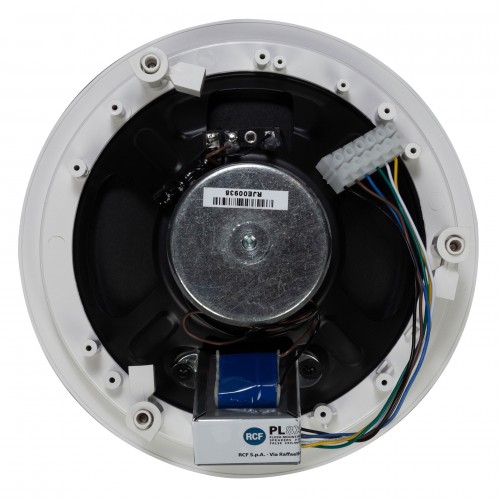

PL8X RCF COAXIAL CEILING SPEAKER

Acoustical specifications
Frequency Response (-10dB):  60 Hz ÷ 20000 Hz
Max SPL @ 1m:  109 dB
Coverage angle:  80°
System Sensitivity:  93 dB
Power section
Nominal Impedance (Ohm):  8 ohm
Power Handling:  20 W RMS
Peak Power Handling:  80 W PEAK
Recommended Amplifier:  40 W
Transducers
Dome Tweeter:  Coaxial 1.0''
Woofer:  Coaxial 8''
Input/Output section
Input connectors:  Euroblock
Constant Voltage Transformer:  70/100 V
Power selection 1 (100 V):  20 W - 500 ohm
Power selection 2 (100 V):  10 W - 1000 ohm
Power selection 3 (100 V):  5 W - 2000 ohm
Power selection 4 (100 V):  2.5 W - 4000 ohm
Standard compliance
IP protection grade:  IP 44
CE marking:  Yes
Physical specifications
Cabinet/Case Material:  Plastic
Hardware:  Plastic Material
Grille:  Steel
Color:  White - RAL 9003
Size
Depth:  88 mm / 3.46 inches
Recessed Depth:  80 mm / 3.15 inches
Diameter:  247 mm / 9.72 inches
Cut out diameter:  224 mm / 8.82 inches
Weight:  1.23 kg / 2.71 lbs
Shipping informations
Package Height:  280 mm / 11.02 inches
Package Width:  280 mm / 11.02 inches
Package Depth:  130 mm / 5.12 inches
Package Weight:  2.09 kg / 4.61 lbs
