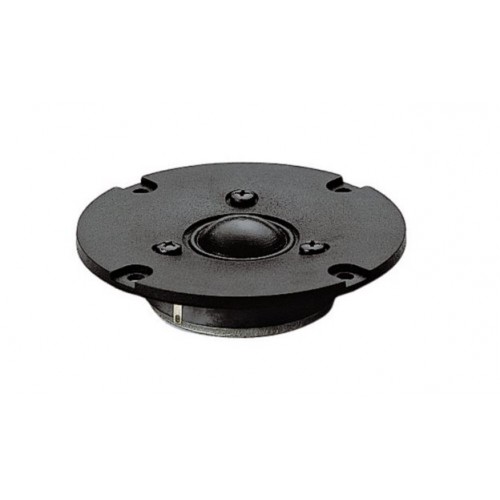

Tweeter Ciare HT 259

Tweeter Ciare HT 259
Tweeter Ciare HT 259
Tweeter Ciare HT 259
Tweeter Ciare HT 259
Tweeter Ciare HT 259
Tweeter Ciare HT 259
Tweeter Ciare HT 259
0 reviews - Write a review
30.03€
Ex Tax: 24.02€
  • Stock: Out Of Stock
  • Model: Visokotonac Ciare HT 259
Ciare speakers Ciare speakers
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

General Specifications

Musical power (W): 120
Nominal power AES (W) 60
Nominal diameter (''/mm) 1''- 26mm
Nominal impedance (Ω) 8
Voice coil diameter (mm): 26
Sensitivity 1W/1m (dB) 89
Spare part code N/A

Thiele Small Parameters

Note
Re 6,3
Fs 1.000
Qms 5
Qes 3
Qts 1,87
Mms 0,3
Cms 0,09
D 32
Vas
BxL 2,3
Linear Mathematical Xmax
n
Le (1kHz) 0,07 mH

Applications

Applications Tweeter
Recommended Loading N/A
Loading Volume N/A
Tuning Frequency N/A
Frequency range 2.500-20.000 Hz

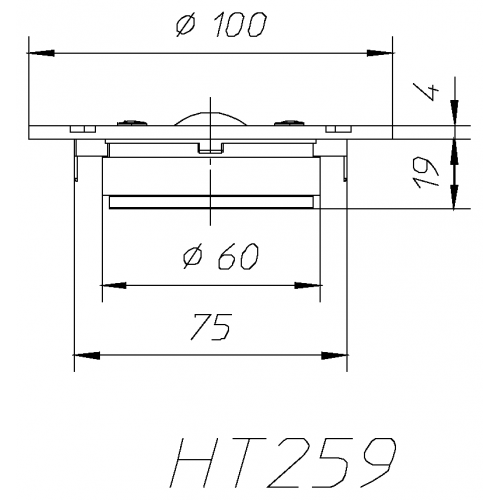

Dimension and weight

Overall diameter 100 mm
Total depth 19 mm
Flange thickness 4 mm
Front mount baffle cutout diameter 65 mm
N. of mounting holes 4
Mounting holes diameter (mm) 5 mm
Bolt circle diameter 88 mm
Gross weight 0,28 kg
