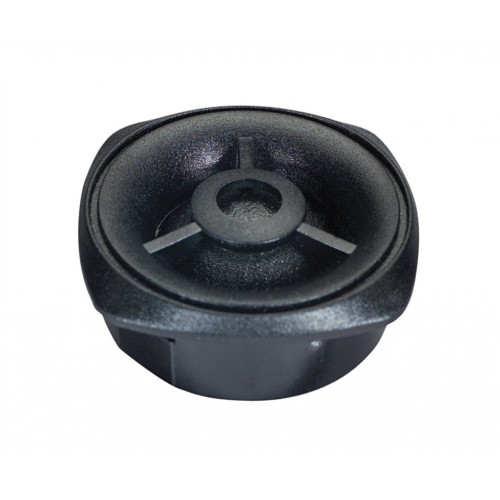

Tweeter Ciare HT198N

Tweeter Ciare HT198N
Tweeter Ciare HT198N
Tweeter Ciare HT198N
Tweeter Ciare HT198N
Tweeter Ciare HT198N
Tweeter Ciare HT198N
Tweeter Ciare HT198N
0 reviews - Write a review
72.00€
Ex Tax: 57.60€
  • Stock: Out Of Stock
  • Model: Visokotonac Ciare HT198N - par
Ciare speakers Ciare speakers
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

General Specifications

Musical power (W): 100
Nominal power AES (W) 50
Nominal diameter (''/mm) 20 mm
Nominal impedance (Ω) 8
Voice coil diameter (mm): 19
Sensitivity 1W/1m (dB) 90
Spare part code RHT198N

Thiele Small Parameters

Note
Re 6,3
Fs 1540
Qms 2,57
Qes 12,74
Qts 2,13
Mms 0,15
Cms
D 23
Vas
BxL 1
Linear Mathematical Xmax
n
Le (1kHz) 0,07

Materials

Basket Type N/A
Magnet Type Neodimio
Cone Material Soft dome in seta
Suspension Material
Spider Material
Former material Kapton
Winding material
Connector type
Cone shape
Gap height 1,5

Applications

Applications Tweeter
Recommended Loading N/A
Loading Volume N/A
Tuning Frequency N/A
Frequency range 3000-20.000 Hz

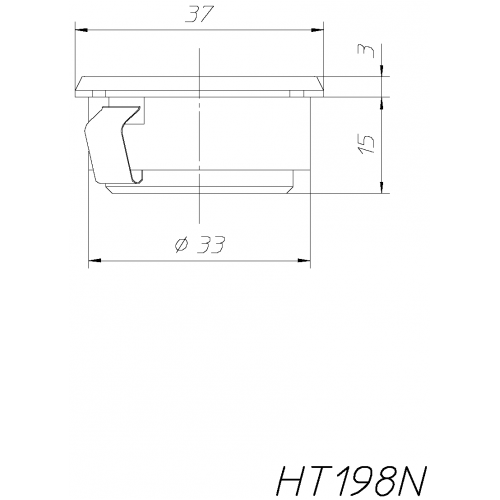

Dimension and weight

Overall diameter 37 mm
Total depth 15 mm
Flange thickness 3 mm
Front mount baffle cutout diameter 33 mm
N. of mounting holes
Mounting holes diameter (mm)
Bolt circle diameter
Gross weight 0,05 kg
