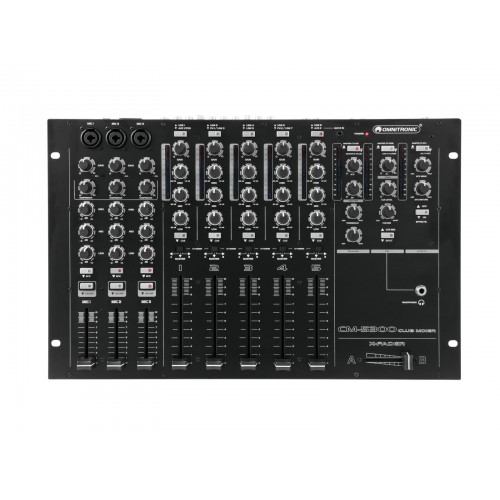

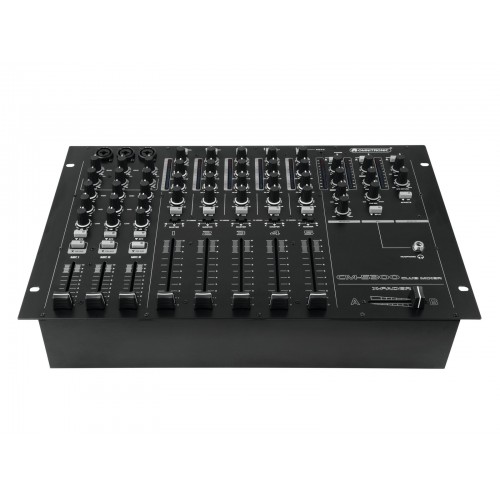

OMNITRONIC CM-5300 Club Mixer

PRO 5-channel club mixer

• High-grade stereo mixer for clubs and numerous mobile PA applications
• 5 stereo input channels with gain control, 3-band kill EQ (+12/ -26 dB) and 10-digit LED level meter
• Front panel AUX input
• Rear stereo input FOH for stage mixers
• Smooth dual-rail channel input faders (60 mm/100 mm)
• 3 microphone input channels with front combo connector
• Gain control, peak LED, 3-band EQ and on air switch per microphone channel
• One-knob compressor per microphone channel
• 2-parameter adjustable auto talkover for automatic music level reduction when microphone is used

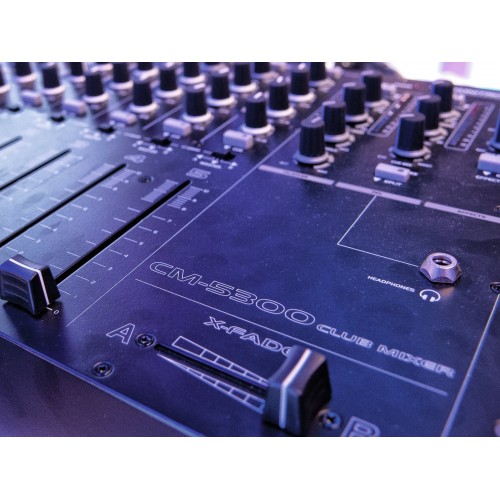

• Fully assignable smooth dual-rail crossfader (45 mm)
• Master section with two separately controllable stereo outputs, output 2 switchable to mono

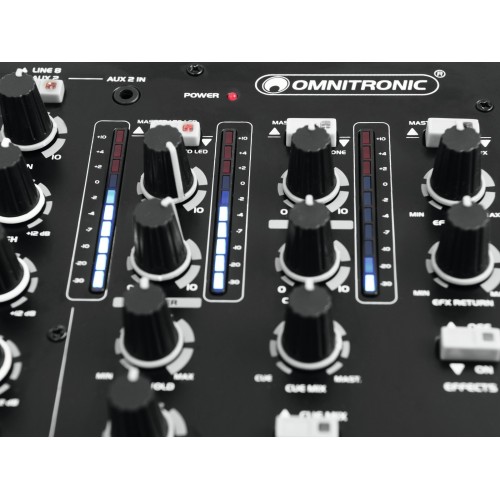

• 10-digit stereo LED level meter, switchable between both master outputs

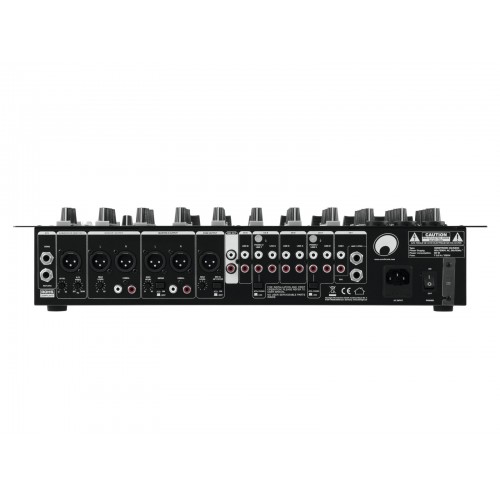

• Balanced XLR and RCA outputs
• Additional mono zone output (with switchable 80Hz HPF) which can be routed to the master bus or channel 5
• 10-digit LED level meter for the zone output
• Mono subwoofer output with integrated active crossover (frequency/level adjustable)
• All outputs with rear-side maximum level setting controls
• Adjustable effects send/return path, assignable to mic or master bus
• PFL section with PFL/master mix control and cue mix/split option
• Record output, independent of the master
• (19") 48.3 cm rack installation 7 U
• For application areas such as: Clubs/dancing school; Installation; mobile djs / entertainer; restaurants, bars and hotels
