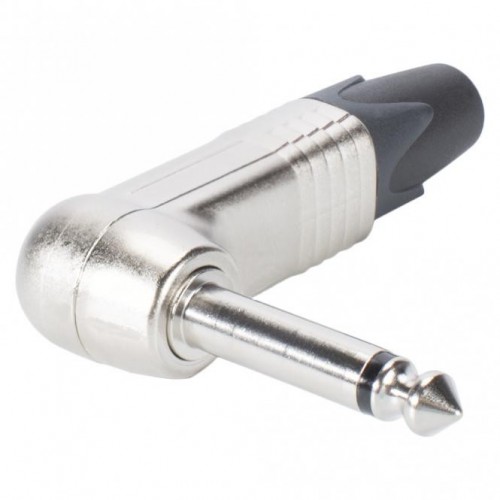

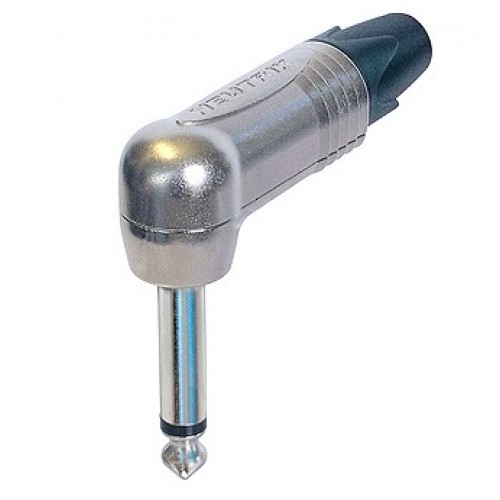

NP2RX 1/4"-6.3mm Neutrik professional right-angle banana-plug, 2-pole

NP2RX 1/4"-6.3mm Neutrik professional right-angle banana-plug, 2-pole, nickel contacts, nickel shell

Electrical
Dielectric strength:     1 kVdc
Insulation resistance:     > 2 GΩ (initial)
Rated current per contact:     depends on mating connector A
Rated voltage:     < 50 V
Mechanical
Cable OuterDiameter:     4 - 7 mm
Lifetime:     > 1000 mating cycles
Wiresize:     1 mm²
Wiresize:    18 AWG
Wiring:     Solder contacts
Material
Bushing:     Polyacetal (POM) + PU
Contact plating:     2 µm Ni (Su)
Contacts:     Brass (CuZn39Pb3)
Insert:     Polyamide (PA 6.6 30 % GR)
Shell:     Zinc diecast (ZnAl4Cu1)
Shell plating:     Nickel
Strain relief:     Polyacetal (POM)
Temperature range:     -20 °C to +65 °C
