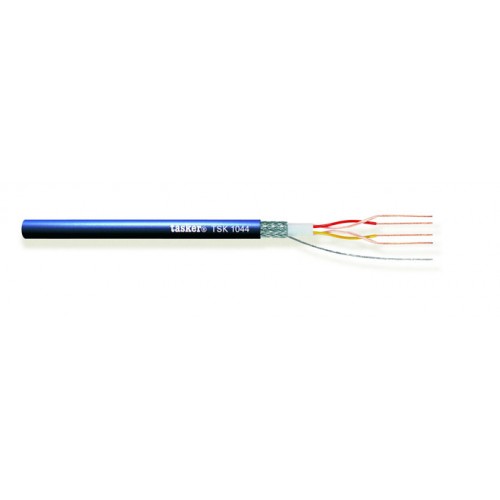

TSK1044 L.S.Z.H. Tasker 2x2x0.22 mm² - O.F.C. Professional Quad audio-microphone cable

TSK1044 L.S.Z.H. Tasker 2x2x0.22 mm² -  O.F.C. Professional Quad audio-microphone cable

Flexible flat pair twisted in O.F.C. (Oxigen Free Copper - 99,99% pure copper), with braided shielding covering 95%.

Outer cable diameter:  Ø 5,20 (±0,10) mm
Conductor Resistance:  79.15  Ω/Km
Capacity Core/Core:  65 pF/mt
Capacity Core/Shield:  150 pF/mt
Max. Rated Voltage:  49 V
Operative Temperature:   -20/+70°C
O.F.C. red copper stranded formation:  28x0.10 mm
Nominal cross-section:   2x2x0.22 mm²

CATEGORY Audio Cable
APPLICATIONS Audio quad premade cables
A: Night Blue Flame Retardant PVC sheath. Outer cable diam. Ø 5,20 (±0,10) mm.
B: Braided Shielding O.F.C. tinned copper covering 95% + Drain Wire.
C: The cores are stranded in a pair with textile waste filler between conductors and wrapped with not woven polyester based tape.
D: Cores Insulation with compact XLPE – Diam. Ø 1,10 (±0,10) mm. One colored transparent-red and one transparent-yellow.
E: O.F.C. red copper - formation 28x0,10 mm. Nom. Cross section 2x2x0,22 mm².
