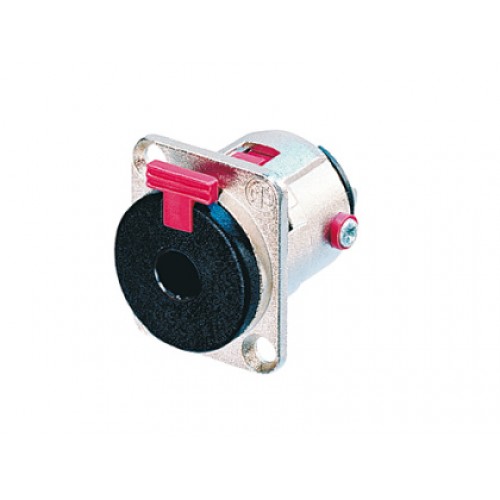

Neutrik NJ3FP6C - 6.3 mm Jack female stereo

NJ3FP6C
Locking 1/4" 6.3mm jack, D-size shell, nickel metal housing and silver contacts

The 3-pole 6.3mm Jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

Electrical
Contact resistance     < 6 mΩ (initial)
Dielectric strength     1 kVdc
Insulation resistance     ≥ 1 GΩ @ 500 V dc
Rated current per contact     10 A
Mechanical
Insertion force     < 30 N
Withdrawal force     < 20 N
Lifetime     > 10000 mating cycles
Locking force     > 80 N
Wiresize     1 mm²
Wiresize     18 AWG
Wiring     Solder contacts
Locking device     Latch lock
Mounting direction     Front mounting
Chassis shape     D
Material
Contact plating     2 µm Ag
Contacts     Brass (CuZn37) (Ground)
Insert     Polyamide (PA 6.6 30 % GR)
Shell     Zinc diecast (ZnAl4Cu1)
Shell plating     Nickel
Strain relief     Polyacetal (POM)
