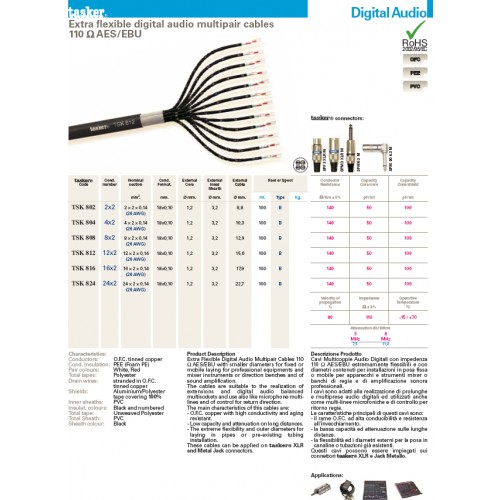

TSK808 Tasker 8x2x0.14 mm², 26AWG, Digital Audio Multi-pair cable110 Ohm, AES-EBU

Outer cable diameter:  Ø 12.90 (±0,10) mm
Conductor Resistance:  138.00  Ω/Km
Capacity Core/Core:  50 pF/mt
Capacity Core/Shield:  100 pF/mt
Impedance:  110 Ω
Max. Rated Voltage:  49 V
Operative Temperature:   -15/+70°C
O.F.C. tinned copper formation:  18x0.10 mm
Nominal cross-section:   8x2x0.14 mm²

Extra Flexible Digital Audio Multipair Cables 110 Ω AES/EBU with smaller diameters for fixed or mobile laying for professional equipments and mixer instruments or stage-boxes and of sound amplification.

The cables are suitable to the realization of extensions and digital audio balanced multi-sockets and use also like microphone multi-lines and of control for return direction.

The main characteristics of this cables are:
- O.F.C. copper with high conductivity and aging resistant.
- Low capacity and attenuation on long distances.
- The extreme flexibility and outer diameters for laying in pipes or pre-existing tubing installation.

These cables can be applied on tasker ® XLR and Metal Jack connectors.
