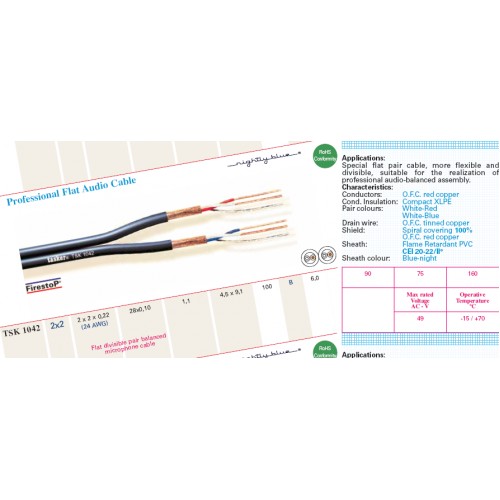

TSK1042 L.S.Z.H. Tasker 2x2x0.22 mm² - 24 AWG, O.F.C. Professional stereo-balanced audio-microphone cable

TSK1042 L.S.Z.H. Tasker 2x2x0.22 mm² - 24 AWG, O.F.C. Professional stereo-balanced audio-microphone cable

Outer cable diameter:  4.50x9,10 (±0,10) mm
Conductor Resistance:  79.15  Ω/Km
Capacity Core/Core:  75 pF/mt
Capacity Core/Shield:  160 pF/mt
Max. Rated Voltage:  49 V
Operative Temperature:   -20/+70°C
O.F.C. red copper stranded formation:  28x0.10 mm
Nominal cross-section:   2x2x0.22 mm²

CATEGORY Flat Audio Cable
APPLICATIONS Professional stereo-audio-balanced assembly
A: Night BlueSoft Flame Retardant PVC Sheath. Outer cable Dimension: 4,50x9,10 (±0,10) mm.
B: Each pair isshielded in O.F.C. red copper spiral covering 100%. + Tinned copper drain wire.
C: Cores Insulation with compact XLPE. Diam. Ø 1,10 (±0,10) mm. Pairs Color: White/Red and White/Blue.
D: O.F.C. red copper stranded formation 28x0,10 mm. Nom. Cross section 2x2x0,22 mm²
