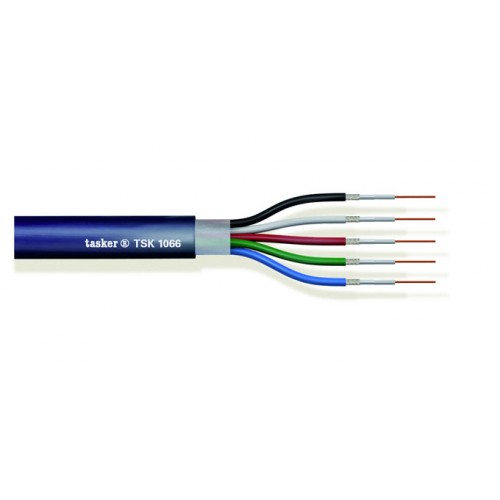

TSK1066 tasker 5x0.29 mm² Special Multi-coaxial Video-cable 5x75 Ohm

TSK1066 tasker 5x0.29 mm² Special Multi-coaxial Video cable 75 Ω

Outer cable diameter:  Ø 14.70 (±0,20) mm
Conductor Resistance:  61 Ω/Km
Capacity Core/Shield:  56 pF/m
Velocity of Propagation:  78%
Impedance:  75 Ohm
Max Rated Voltage:  49 V
Operative Temperature:   -20/+70°C
Stiff wire formation in O.F.C. red copper:   1x0.61 mm.
Nominal Cross section:  5x0.29 mm2


Attenuation dB/100 m:    30 MHz - 6.2
                                              100 MHz - 11.3
                                              200 MHz - 15.0
                                              300 MHz - 18.2
                                              500 MHz - 24.0
                                            1000 MHz - 36.0

Multicoaxial cable for video analogic and digital signals.
Conductors: stiff wire in O.F.C. red copper
I° Shields: Aluminium tape covering 100%
II° Shields: Braided covering 90% O.F.C. tinned copper
Sheath colours: Red, Green, Blue, Black,White
Total Sheath: Flame Retardant PVC CEI 20-22/II°

Broadcast cable for video mixers or other equipment to be realized in TV studios and/or production studios.
The coaxials are all double shielded and have a particular dielectric, which confers a low capacity and attenuation of the video signal on 100 mt.
Cable advised also for high definition transmission of composed video signals 75Ω + R.G.B. or digital Audio, for video-projection equipment, monitors,big screens etc.
