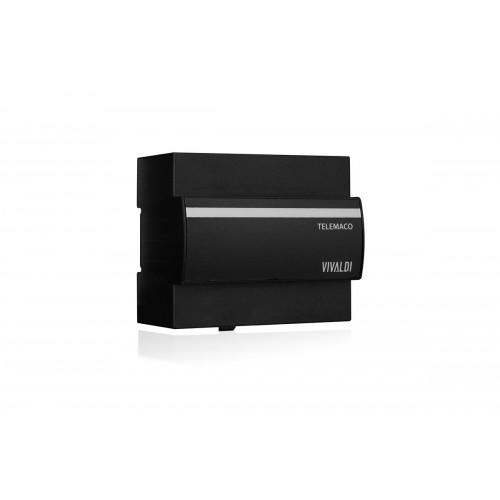

Vivaldi Multimedia TELEMACO multiroom-6-zone-system

Vivaldi Multimedia TELEMACO multiroom-system

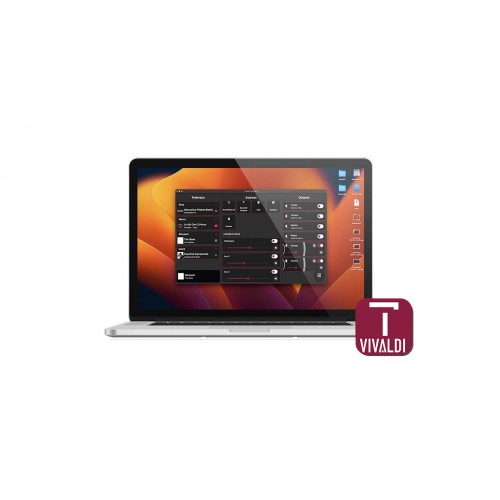

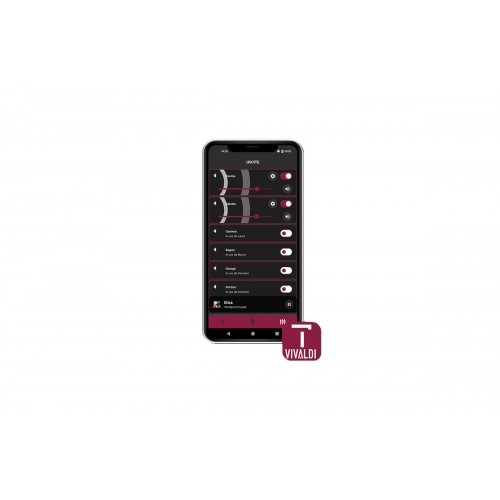

Integrated all-in-one multiroom system, complete with amplification and multimedia audio sources compatible with KNX, MQTT, REST.API and home automation . Management and supervision via Telemaco APP available for iOS & Android.
System expandable to 6 players and to 12 zones, combining 2 Telemaco.
Inputs:
- 3 stereo inputs unbalanced line level 0db
- Power supply connector
- Micro SD
Outputs:
- 6 amplified outputs (6x20W @ 4ohm)
- 6 line level balanced preamp outputs to expand the number of speakers or power zone via external amplifiers (##Vivaldi Multimedia E30S#, ##Vivaldi Multimedia E80S#, Vivaldi PMA , Vivaldi PSA series power amplifiers, Vivaldi active subwoofers, Vivaldi active speakers)
- 8 Ohm speakers for each output, minimum impedance 4 Ohm
Connectivity:
- KNX connector embedded
- RJ45 LAN 10/100 connector
Audio player / Users:
4 Players integrated with services
    Spotify Connect
    YouTube
    Webradio
    Airplay
    NAS
    Local music (Android)
    Playlist
    AUX
Other:
- Playlist creation and quick access
- Favorite webradio with fast access
- Preset functionality with quick access
- Function Doorbell with choice for single zone do not disturb
- Webpage configuration
- Customizing Player/User names, AUX inputs and zone outputs
- Shortcut access to player/user
- Stereo zone setting (for up to 3 stereo zones or mono/stereo combination)
- Possibility to pair two devices to create a single 12-zones system, 6 AUX inputs, 6 players (maximum 6 stereo zones or mono/stereo combinations)
- Dedicated control app (Vivaldi Telemaco)
- Supported control APIs: KNX, MQTT, REST (with access token)
- Multi-function touch button on the front (DHCP reset, factory reset, static IP...)
- Multi-colored LED status bar.
- Energy saving amplifiers
- OTA updates
Option:Vivaldi Multimedia C4IO
programmable buttons with 4 inputs. Short or long press multifunction keys to associate two functions to each single Button. The first two inputs (buttons) can be used with rotary encoder (Vivaldi Multimedia TVE to be ordered separately) for volume control.
Functions assignable to the buttons Vivaldi Multimedia C4IO:
    Increase / decrease in volume
    Inputs / outputs
    Mute and deactivation switch
    Preset recall
    Forward/backward track player
    Stop
    Play / Pause player
    Play USB (priority)
Cables to be used:
- #Vivaldi Ulisse MICRO2.50## system cable for analog inputs and preout outputs
- Red-black cable 2x0,75 or equivalent for speaker connection and power supply
- LAN cable cat5e/cat6
- KNX bus cable
Dimensions
(WxHxD): 106x91x62mm, 6 DIN modules.
Weight: 0,250 kg

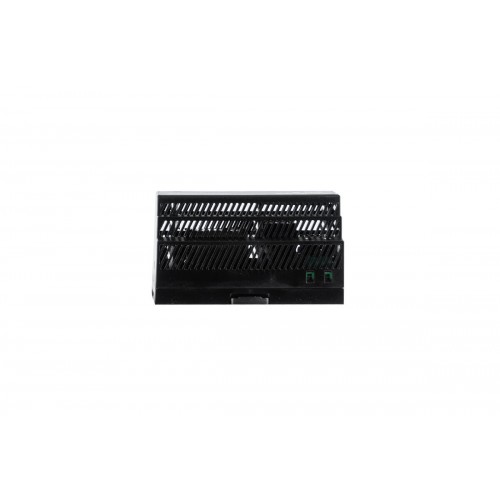

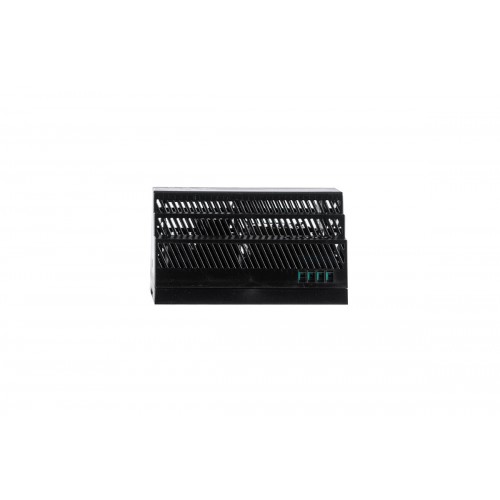

Power supply : 24vdc / 150W max (#Vivaldi Giove AL6B## not supplied)
