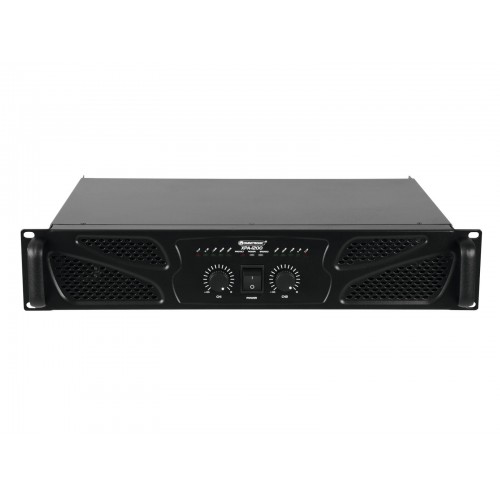

OMNITRONIC XPA-1200 Amplifier

Name: OMNITRONIC XPA-1200 Amplifier
Brand: Omnitronic
Price: 3410.00 EUR
Availability: OutOfStock

0 reviews - Write a review

452.58€

Ex Tax: 362.06€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Class AB PA amplifier with limiter, 2 x 610 W RMS (4 ohms), 2 x 420 W RMS (8 ohms)

2 operating modes can be selected (stereo or bridged)
2 level controls
Each channel with LED for activated protective circuit (protect) and output meter with clip LED
Signal inputs via XLR or 6.3mm jack connectors
Speaker outputs via lockable speaker jacks and pairs of screw terminals
Additional Speaker plug for 8-ohm bridge operation
Class AB circuitry
(19") 48.3 cm rack installation 2 U
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan
For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	800 W 1/8 power
Output power:	2 x 610 W RMS (4 ohms) 2 x 420 W RMS (8 ohms) 1200 W RMS bridged (8 ohms)
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>95 dB
THD:	<0,5 % at 1 kHz
Cooling:	1 x temperature-controlled fan , air flow from front to rear
Impedance:	Input: 20 kOhm , bal. Input: 10 kOhm , unbal.
Circuitry:	Class AB
Slew rate:	>20 V/µs
Damping factor:	>350
Control elements:	Power switch, level control per channel, groundlift selector, limiter selector, mode switch (stereo/bridged)
Controls:	Short-circuit; overheat; DC voltage; power on/off transients; softstart
Status LED:	Power, level meter, clip, bridged, protect
Connections:	Input: line via 2 x 3-pin XLR Input: line via 2 x 6.3 mm jack socket (mono) mounting version Output: speaker via 2 x speaker built-in socket (F) Output: speaker via screw terminal Input: speaker (bridge) via 1 x speaker built-in socket (F) Output: speaker (bridge) via screw terminal
Input sensitivity:	1,4 V
Max. level:	Input: +21 dBV Input: +9 V
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 35,4 cm Height: 8,9 cm
Weight:	11,90 kg
