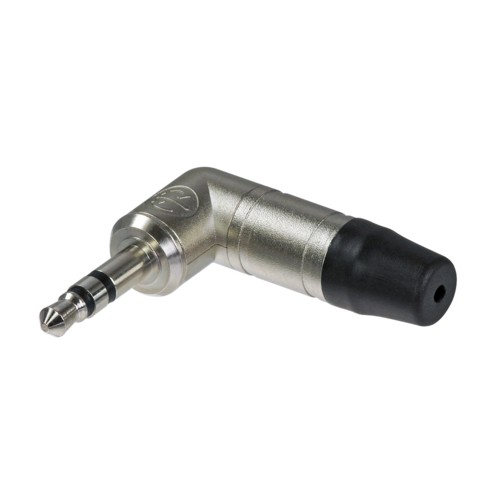

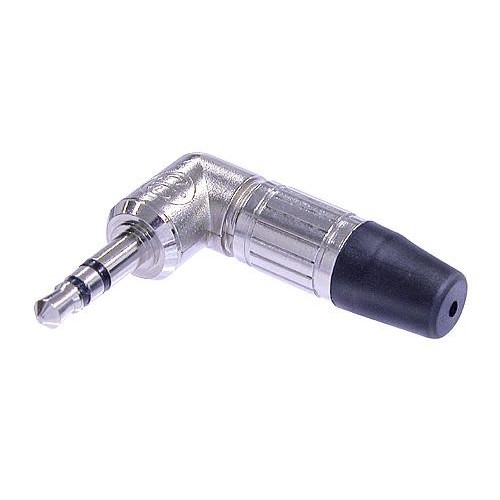

NTP3RC 3-pole 3.5 mm audio plug mini-banana Neutrik

3 pole 3.5 mm audio plug mini-banana, solder termination, chuck type strain relief, bushing, silver housing, gold contacts

The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.

Electrical
Contact resistance:      depends on mating connector mΩ
Dielectric strength:     1 kVdc
Insulation resistance:     > 2 GΩ (initial)
Rated voltage:     <50 V
Mechanical
Cable Outer Diameter:     2 - 4.5 mm
Wiresize:     0,22 mm²
Wiresize:     24 AWG
Wiring:     Solder contacts
Material
Bushing:     Brass (CuZn39Pb3) + PU, Ni
Contact plating:     2 µm Ni (Su)
Contacts:     Brass (CuZn39Pb3)
Insert:    Polyamide (PA 6.6 15 % GR)
Shell:     Zinc diecast (ZnAl4Cu1)
Shell plating:     Nickel
Strain relief:     Polyacetal (POM)
Temperature range:     -20 °C to +65 °C
