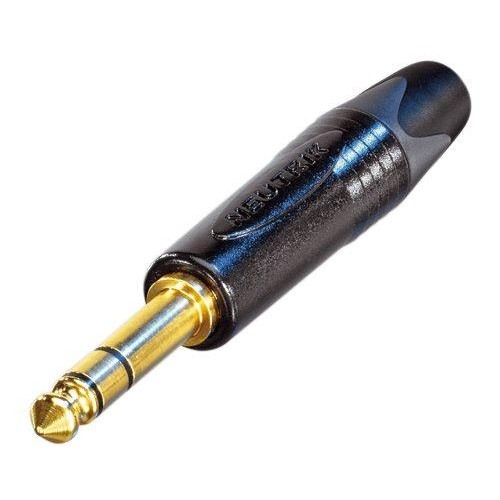

NP3X-B 3-pole 1/4"-6.3mm professional Neutrik banana-plug
NP3X-B 3-pole 1/4"-6.3mm professional Neutrik banana-plug
9.08€
Ex Tax: 7.26€
- Stock: In Stock
- Model: NP3XB
- MPN: NP3XB
NP3X-B 3-pole 1/4"-6.3mm professional Neutrik banana-plug, gold contacts, black shell
Electrical
Contact resistance - depends on mating connector mΩ
Dielectric strength - 1 kVdc
Insulation resistance - > 2 GΩ (initial)
Rated current per contact - depends on mating connector A
Rated voltage - < 50 V
Mechanical
Cable Outer Diameter - 4 - 7 mm
Lifetime - > 1000 mating cycles
Wiresize - 1 mm²
Wiresize - 18 AWG
Wiring - Solder contacts
Material
Bushing - Polyacetal (POM) + PU
Contact plating - 0.2 µm Au
Contacts - Brass (CuZn39Pb3)
Insert - Polyamide (PA 6.6 30 % GR)
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Black chromium
Strain relief - Polyacetal (POM)
Temperature range - -20 °C to +65 °C
