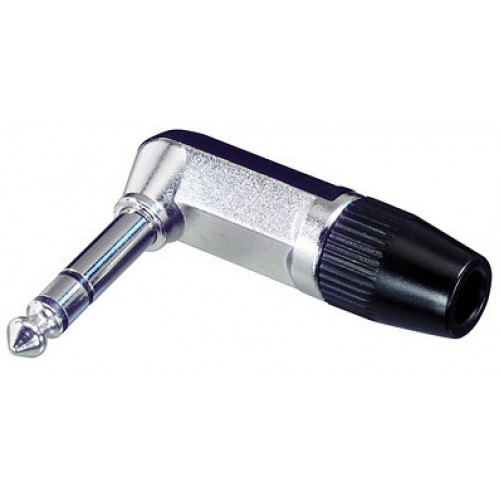

Neutrik / Rean NYS208 1/4"-6.3mm angled jack plug stereo (3-pole)

Neutrik / Rean NYS208  1/4" angled jack plug (3-pole)

NYS208 plug 3-pole 1/4''-6.3mm, right angle , metal housing, plastic bushing

Electrical
Dielectric strength:  0.5 kVdc
Insulation resistance:  ≥ 1 GΩ
Contact resistance:  depends on mating connector
Rated current:  depends on mating connector
Transmission Performance:  null
Mechanical
Cable O.D.:  ≤ 6 mm
Lifetime: 1000 mating cycles
Wiresize:  0.25 mm2
Wiresize:  24 AWG
Material
Contact plating:  2 µm Ni
Contacts:  Brass (CuZn39Pb3)
Shell:  Zinc diecast (ZnAl4Cu1) , Polyamide (PA 6 30 % GR) black
Shell plating:  Nickel
Insulation:  Thermoplastic
Strain relief:  Crimp type SnCe plated
Temperature range:  -20 °C to +70 °C
