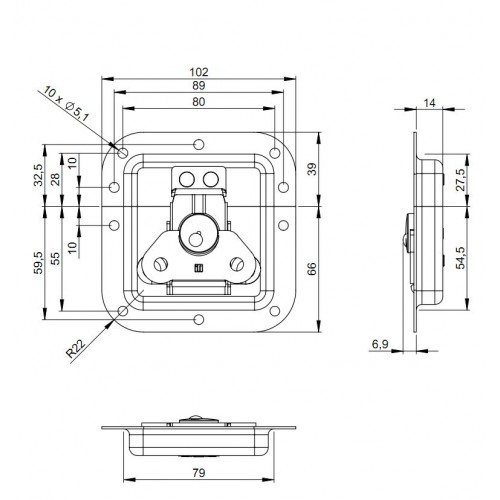

17290S Medium Butterfly catch w spring 14mm deep

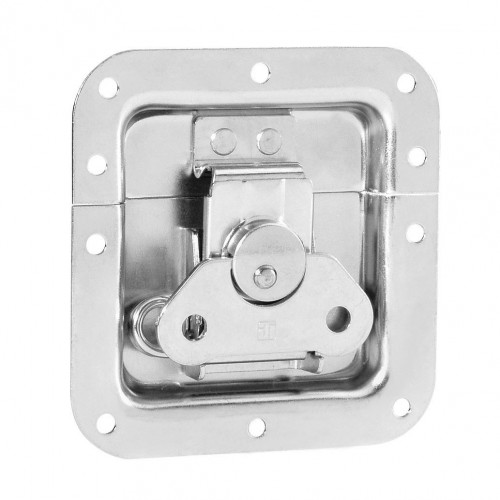

17290S - Medium butterfly catch mounted in dish.

All medium and large Butterfly catches now stop at approximately 30º and are fitted with a kick-out spring to automatically push them out to this point, from which they can be opened further by exerting a gentle tug.

Product type: Catches
Type: Butterfly Latches
Material: Steel
Surface: galvanized
Mounting hole diameter: 5.1 mm
Lockable: no
Dish type: non-cranked
Dish size: medium
Dish depth: 14 mm
Rivet protection design: no
With push-out spring: Yes
Weight: 0,225 kg

17290-91-95 (S/SP) = 14 mm
